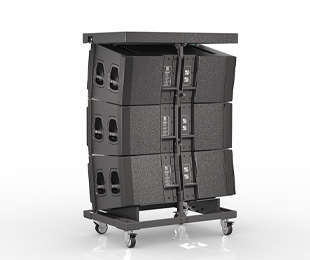

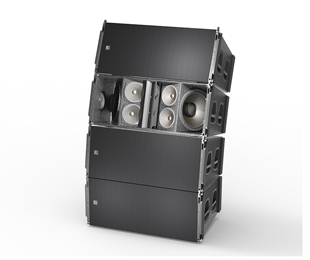

Introducing the ZSOUND VCX - The Pinnacle of Audio Excellence

In the realm of audio technology, superior performance and innovative design are the keys to success. ZSOUND is proud to present our flagship product - the VCX, a high-performance, four-amp, three-way line array system designed for professionals and audio enthusiasts who demand the ultimate sound experience.

Key Features:

• Broad Frequency Response: With a wide frequency response from 55Hz to +16kHz (±3dB), every note is delivered with clarity, whether it's deep bass or crisp treble.

• Exceptional Directivity: Adjustable 80° horizontal directivity allows you to precisely control the sound coverage based on venue requirements.

• High Sensitivity: At 1W/1m, the high/mid/low frequencies reach 112dB SPL/104dB SPL/98dB SPL, delivering louder and clearer sound output.

• Powerful Handling: Capable of handling 240W/600W/500W power for high frequency/mid frequency/low frequency, ensuring ample drive for various large venues.

• Optimized Impedance: Rated impedance of 24Ω/16Ω/12Ω ensures system stability and compatibility.

Technical Specifications:

• Frequency Response: 55 Hz to +16 kHz (±3dB), 45 Hz to 19 kHz (-10dB)

• Sensitivity: H/M/L/R: 112dB SPL/104dB SPL/98dB SPL

• Power: HF/MF/LF(L)/LF(R): 240W/600W/500W/500W

• Impedance: HF/MF/LF(L)/LF(R): 24Ω/16Ω/12Ω

Physical Parameters:

• Dimensions: 449 x 1030 x 565 mm

• Weight: 77 kg

• Connectors: 2 x 8P8, 2 x 8Neutrik NL

Design Aesthetics:

• Materials: 15mm and 18mm multi-ply birch plywood

• Finish: Black polyurethane paint

• Grille: Classic reticulated cloth

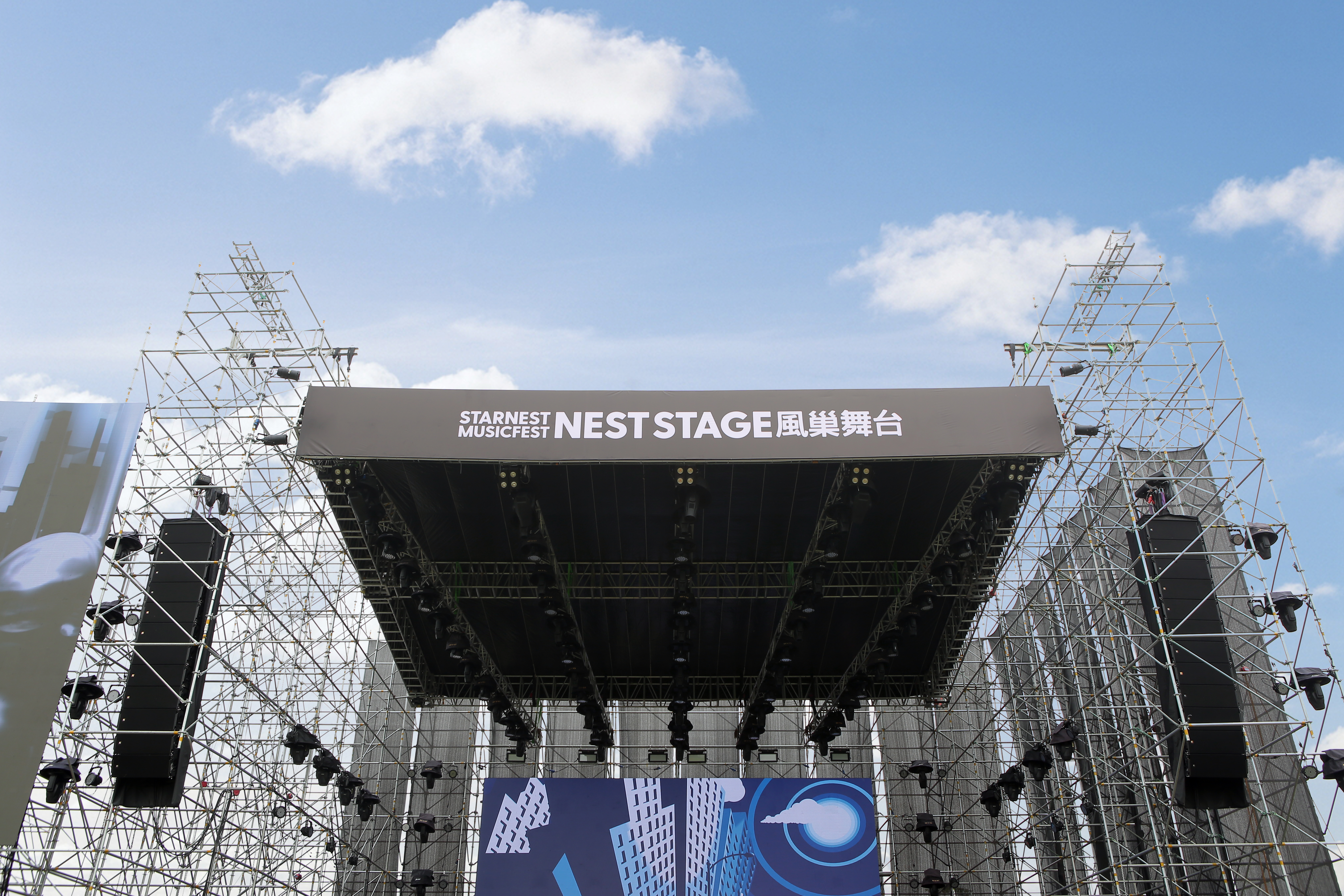

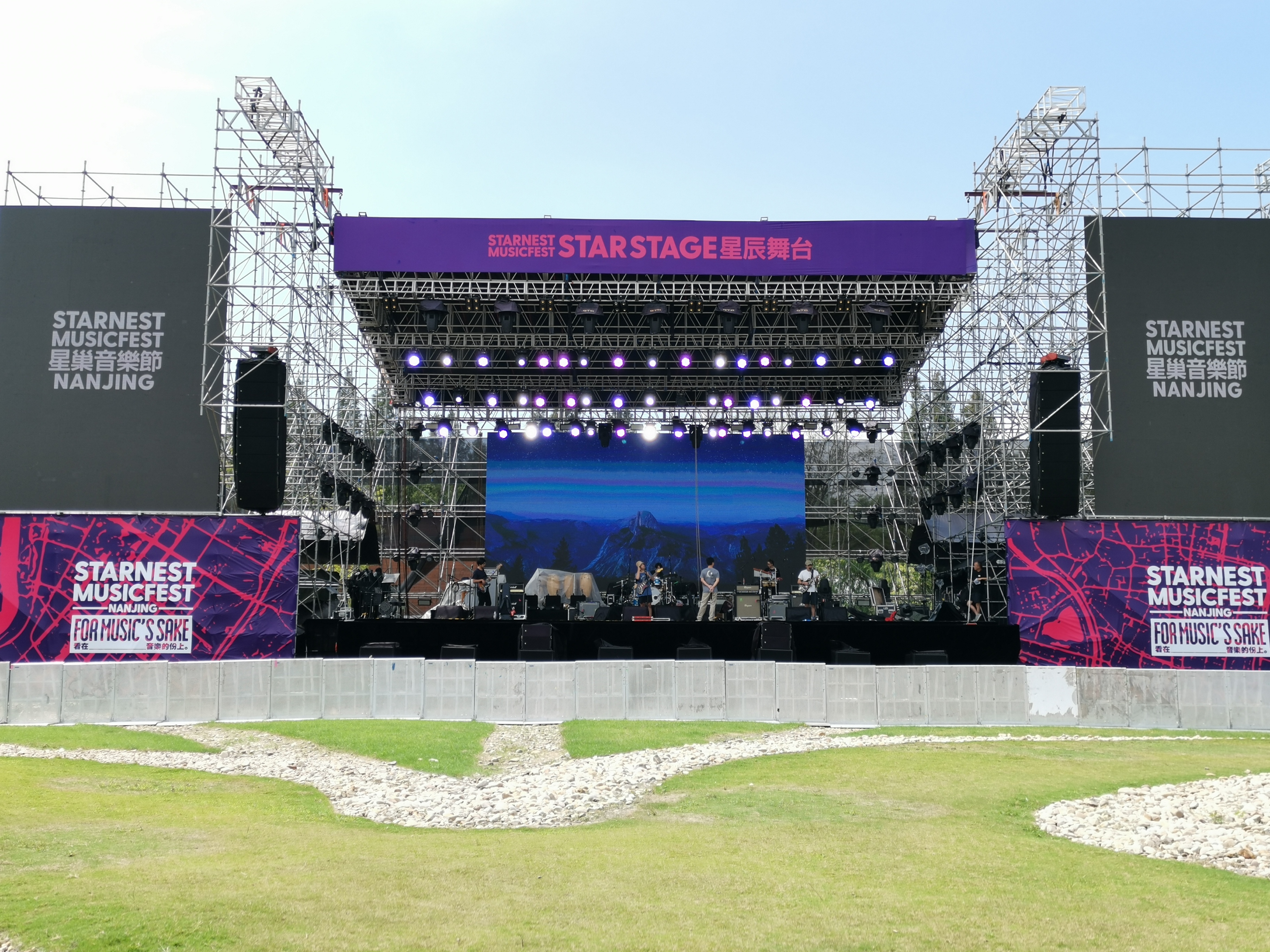

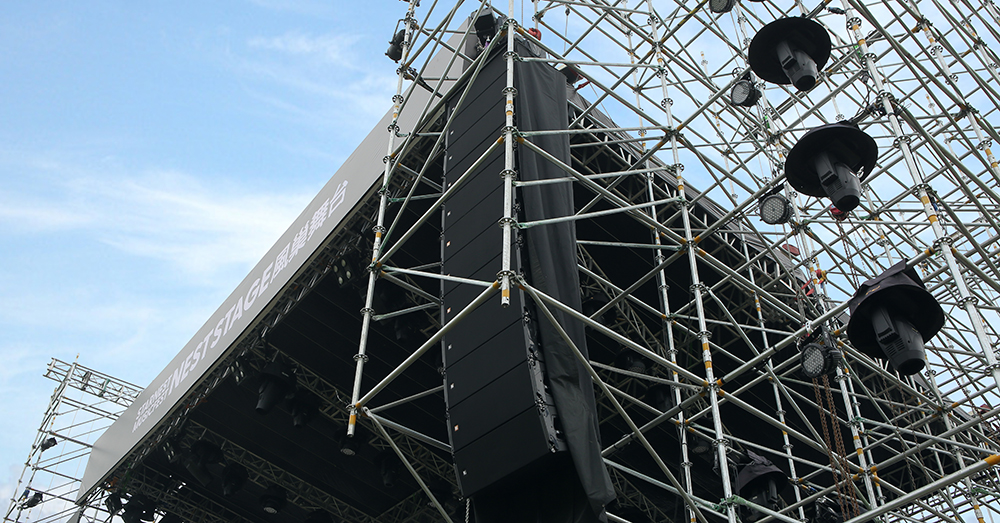

Application Scenarios:Whether it's for stadiums, theaters, large-scale events, or outdoor performances, the VCX delivers an unparalleled audio experience. Its flexible three-point hanging method and 0-8 degree adjustable angle ensure optimal sound distribution in any venue.

Choose ZSOUND VCX for the future of audio
